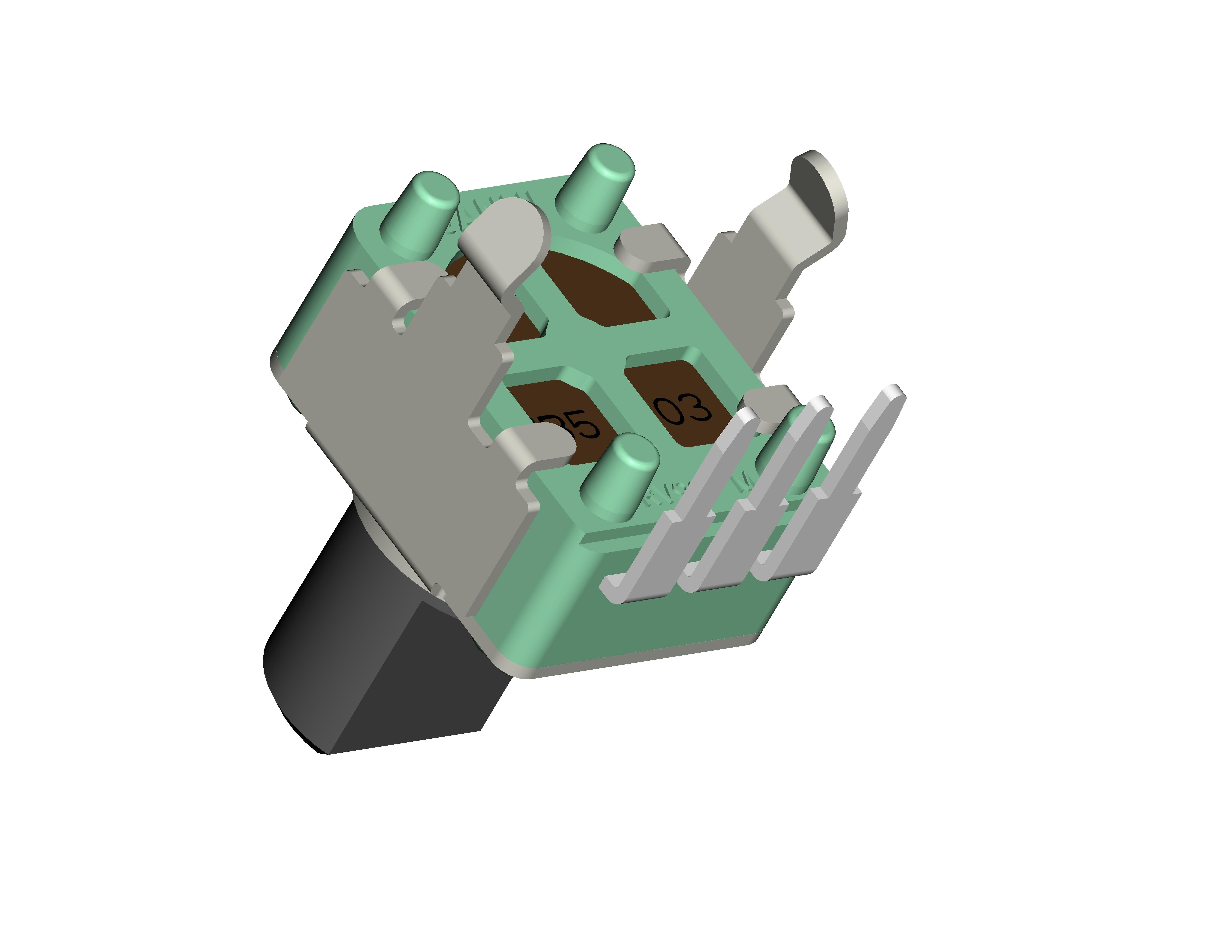

Through Hole DIP Mount Rotary Potentiometer Plastic Metal Power Rating 0.05W Precision Component for Electronic Circuits

Product Description:

The Rotary Potentiometer is a versatile and essential component widely used in various electronic applications to provide precise control over electrical signals. Known also as a Rotary Variable Resistor, this device plays a crucial role in adjusting voltage levels and controlling electrical positions, making it an indispensable tool in both industrial and consumer electronics. The Rotary Potentiometer functions as a rotary electrical position sensor, allowing users to measure and control the angular position of a shaft in a smooth and reliable manner.

One of the standout features of this Rotary Electrical Potentiometer is its robust shaft design, which comes in three distinct types: round, flat, and knurled. The availability of these shaft types ensures compatibility with a wide range of mechanical setups and user preferences. The round shaft is ideal for general applications, providing smooth rotation and ease of installation. The flat shaft offers a secure grip and prevents slippage, making it suitable for applications requiring precise control. Meanwhile, the knurled shaft enhances the user’s grip, allowing finer adjustments and greater tactile feedback, which is particularly beneficial in environments where precise tuning is critical.

Durability and safety are paramount in the design of this Rotary Potentiometer. Constructed from high-quality plastic and metal materials, the potentiometer ensures longevity and reliable performance even under demanding conditions. The plastic components provide excellent insulation and resistance to wear, while the metal parts contribute to the device’s structural integrity and electrical conductivity. This combination of materials results in a product that not only performs well but also withstands mechanical stress and environmental factors.

When it comes to electrical safety, the Rotary Potentiometer excels with an impressive dielectric strength of 500VAC. This high dielectric strength means the device can safely isolate electrical circuits and withstand high voltage without breaking down, thereby protecting both the potentiometer and the connected circuitry from potential damage. Furthermore, the insulation resistance of this rotary electrical position sensor is rated at a minimum of 100MΩ, ensuring minimal leakage current and high reliability in maintaining circuit integrity over prolonged periods of use.

The application range of the Rotary Variable Resistor is extensive, encompassing fields such as audio equipment, industrial controls, instrumentation, and consumer electronics. Its ability to precisely adjust signal levels makes it invaluable in volume controls, tuning circuits, and feedback systems. Additionally, as a rotary electrical position sensor, it provides accurate angular position feedback, which is essential in robotics, automation, and other control systems where precise movement and positioning are critical.

In summary, the Rotary Potentiometer is a highly reliable, durable, and versatile component designed to meet the needs of modern electronic systems. Its multiple shaft types—round, flat, and knurled—offer flexibility for various mechanical interfaces, while its robust construction from plastic and metal ensures long-lasting performance. With a dielectric strength of 500VAC and a minimum insulation resistance of 100MΩ, it guarantees safety and efficiency in operation. Whether used as a rotary variable resistor, a rotary electrical position sensor, or a rotary electrical potentiometer, this product delivers exceptional performance, making it an excellent choice for engineers, technicians, and hobbyists alike.

Features:

• Product Name: Rotary Potentiometer
• Shaft Diameter: 6mm or Customized
• Resistance Range: 300Ω to 3MΩ
• Material: Durable Plastic & Metal
• Shaft Length: 6mm to 20mm (Normal or Customized)
• Gang: Single
• Function: Rotary Analog Adjustment Device
• Type: Rotary Manual Adjustment Tool
• Application: Rotary Voltage Divider Potentiometer

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a high-quality rotary adjustable resistor designed to meet a wide range of application needs. With a resistance range from 300Ω to 3MΩ, this versatile component is ideal for precision control in various electronic circuits. Its through-hole/DIP mount type allows for easy installation on printed circuit boards, making it suitable for both prototyping and mass production environments.

One of the primary application occasions for the SANNI Rotary Potentiometer is in audio equipment, where it serves as a rotary analog adjustment device to control volume levels smoothly and accurately. Its excellent dielectric strength of 500VAC ensures reliable performance even in environments with electrical noise or fluctuating voltages. Additionally, the power rating of 0.05W makes it suitable for low-power signal adjustment tasks, such as tuning sensors or calibrating measurement instruments.

In industrial automation systems, the SANNI rotary voltage divider potentiometer is commonly used for adjusting setpoints, calibrating control loops, and fine-tuning sensor outputs. Its robust plastic and metal construction provides durability and stability, ensuring consistent performance in demanding operational scenarios. Whether used in consumer electronics, automotive controls, or home appliances, this potentiometer enables precise analog adjustments that enhance device functionality and user experience.

Furthermore, the SANNI Rotary Potentiometer finds application in educational and research settings, where it is utilized in experimental circuits and electronic projects that require adjustable resistance. The through-hole mounting type facilitates easy replacement and modification, making it an excellent choice for rapid development and testing.

Overall, the SANNI Rotary Potentiometer is an essential component for any scenario requiring a reliable rotary adjustable resistor or rotary analog adjustment device with a wide resistance range and robust build quality. Its ability to function as a rotary voltage divider potentiometer allows engineers and designers to implement smooth and precise control over voltage levels, making it indispensable in modern electronic design and manufacturing.

Customization:

At SANNI, based in Dongguan China, we offer comprehensive product customization services for our Rotary Voltage Divider Potentiometer to meet your specific needs. Our Rotary Adjustable Resistor products are designed with a resistance range from 300Ω to 3MΩ and a resistance tolerance of ±20%, ensuring precise control in various applications.

We use high-quality plastic shaft materials to provide durability and smooth operation. Our Rotary Voltage Divider Potentiometer models are built to operate reliably within a temperature range of -25℃ to 85℃ and have a dielectric strength of 500VAC, guaranteeing safety and performance under demanding conditions.

Whether you require customized resistance values, shaft specifications, or temperature tolerances, SANNI’s product customization services for Rotary Voltage Divider Potentiometers can be tailored to suit your project's exact requirements. Trust us to deliver reliable and efficient Rotary Adjustable Resistors designed for optimal functionality and longevity.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable variable resistance for a wide range of electronic applications. For optimal performance, please ensure proper installation and handling according to the product specifications.

If you experience any issues with the Rotary Potentiometer, first verify the wiring connections and ensure that the device is not subjected to mechanical stress beyond its rated limits. Regular maintenance, such as cleaning the contact surfaces with appropriate solvents, can help prolong the lifespan of the potentiometer.

We offer comprehensive technical support to assist with product selection, installation, troubleshooting, and customization. Our support team is equipped to provide detailed documentation, application notes, and guidance to help you integrate the Rotary Potentiometer effectively into your projects.

For service and repair, please follow the recommended procedures to avoid damage. Replacement parts and accessories are available to ensure continuous operation. Always use genuine components to maintain product integrity and performance.

We are committed to delivering high-quality products and responsive support to meet your technical needs. Should you require further assistance, please refer to the user manual and technical datasheets provided with the product.

Packing and Shipping:

Product Packaging and Shipping for Rotary Potentiometer

The rotary potentiometer is carefully packaged to ensure it arrives in perfect condition. Each unit is individually placed in an anti-static bag to protect against electrostatic discharge. The product is then secured within a sturdy cardboard box with foam padding to prevent any damage during transit.

For bulk orders, multiple units are packed in larger cartons with adequate cushioning material to avoid movement and impact. All packages are clearly labeled with product information, handling instructions, and shipping details.

We offer reliable shipping options including standard, expedited, and express delivery services. Tracking information is provided once the order is dispatched, allowing customers to monitor the shipment status until delivery.

Our packaging and shipping processes comply with international shipping standards to ensure safe and timely delivery of rotary potentiometers worldwide.
